TOOLING / DEEP-HOLE MACHINING
Boring, combined machining, roller burnishing, and trepanning tools selected for the bore type and machining process.
Shengbang supplies rough boring heads, external chip evacuation blind-bore boring heads, TGG combined boring and roller burnishing heads, pneumatic and hydraulic skiving and burnishing tools, blind-bore roller burnishing heads, and trepanning tools. Tool specifications, structure, and configuration are confirmed for the workpiece and machining requirements.
Request a technical proposalTOOLING 01
Rough boring heads and external chip evacuation blind-bore boring heads for deep-hole boring.
BORING TOOL

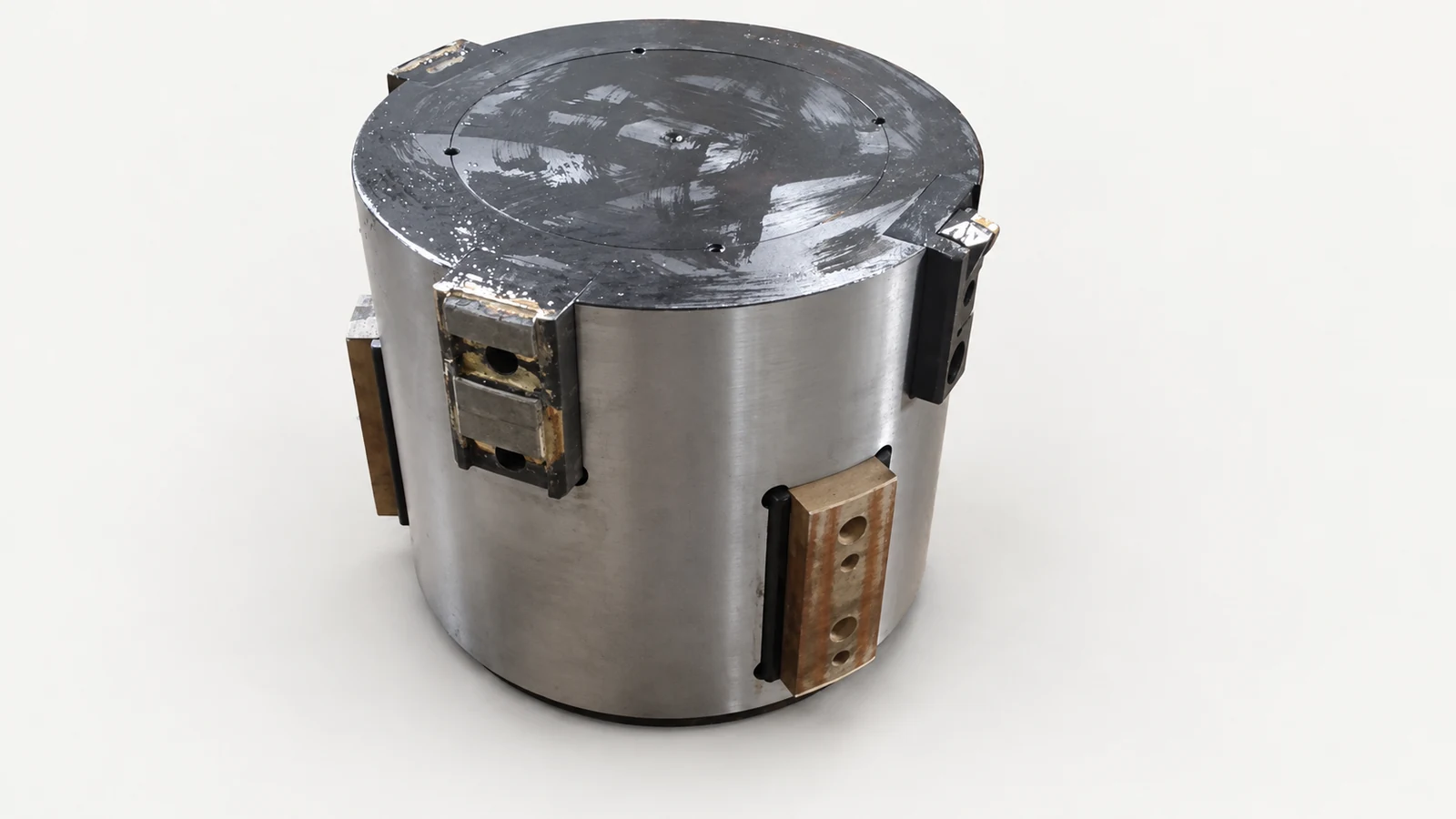

For rough boring of deep holes. The photographs show the tool body, inserts, insert holders, and outer guide structure.

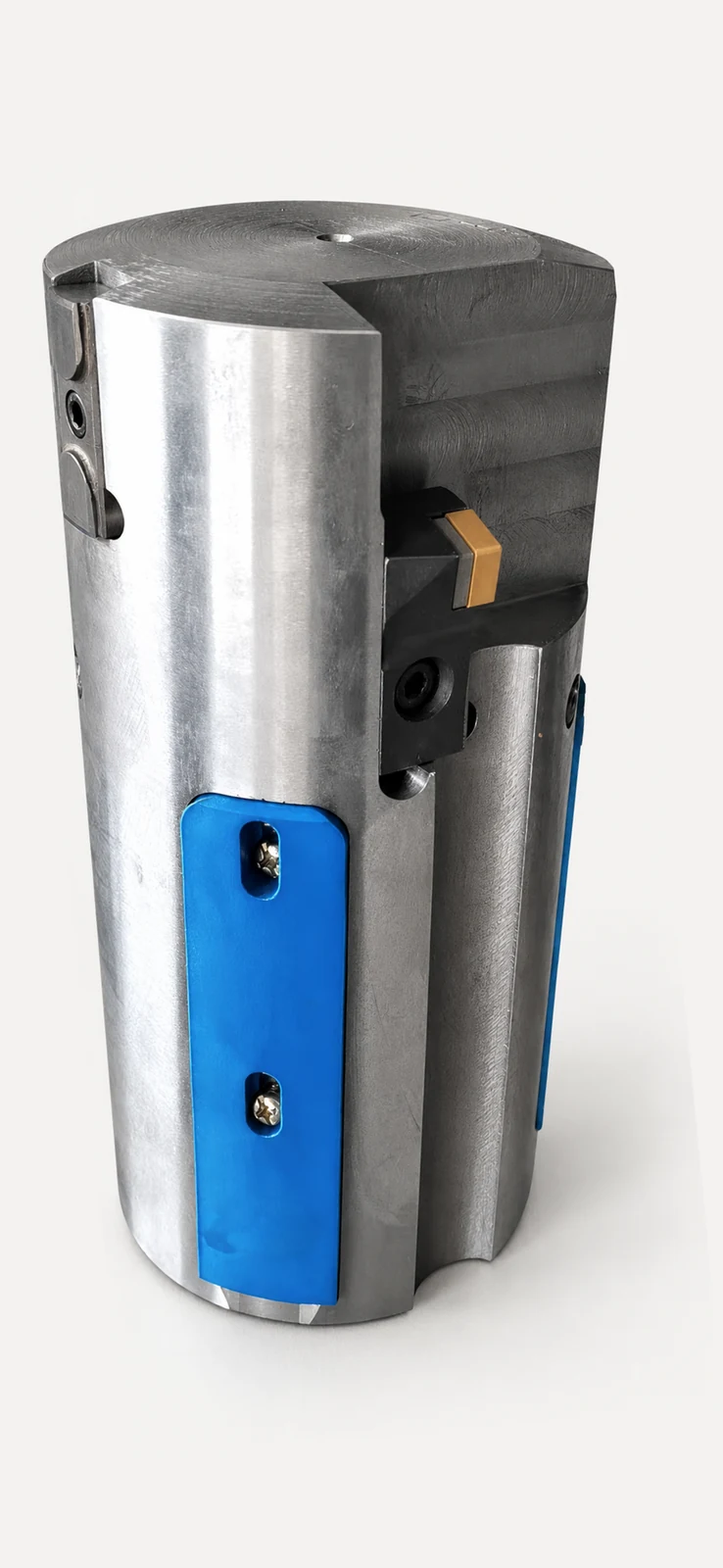

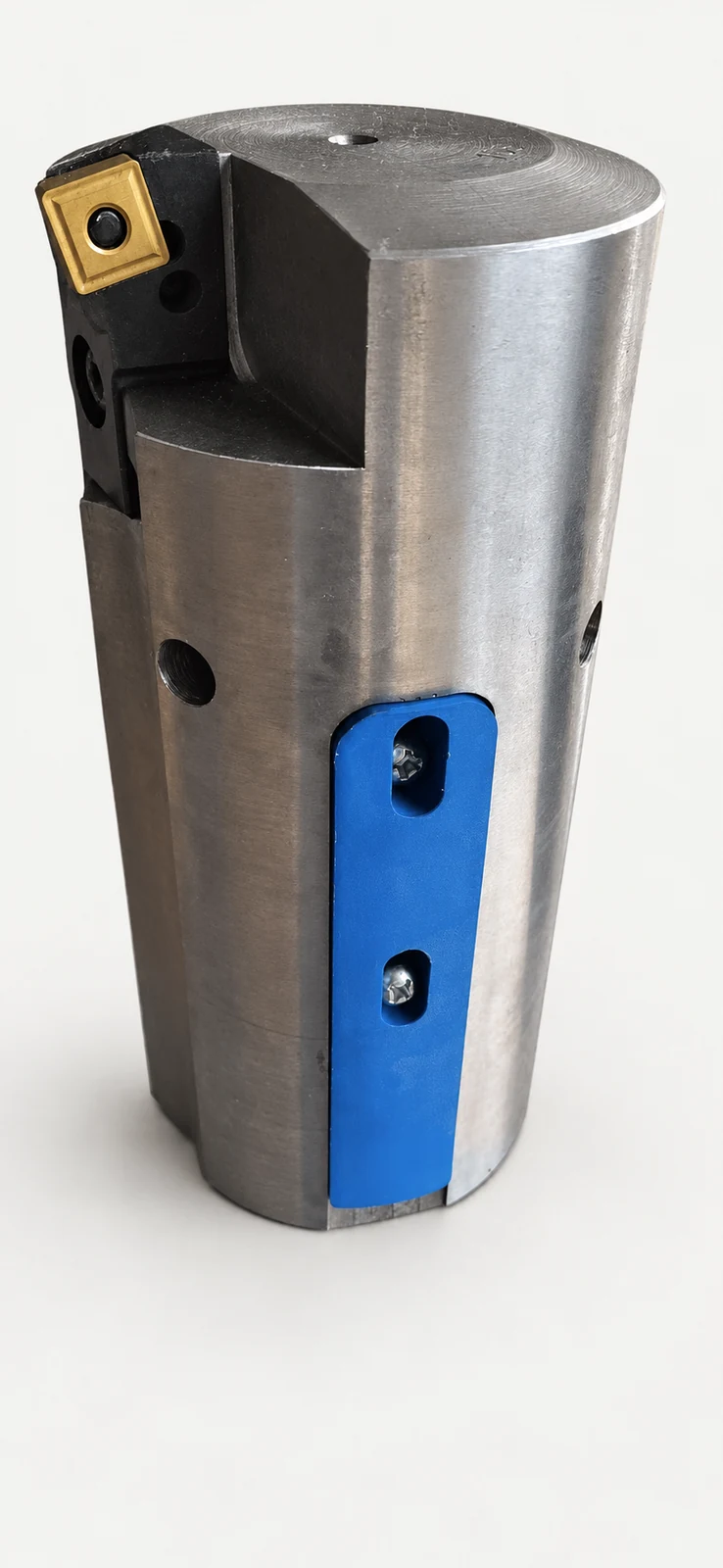

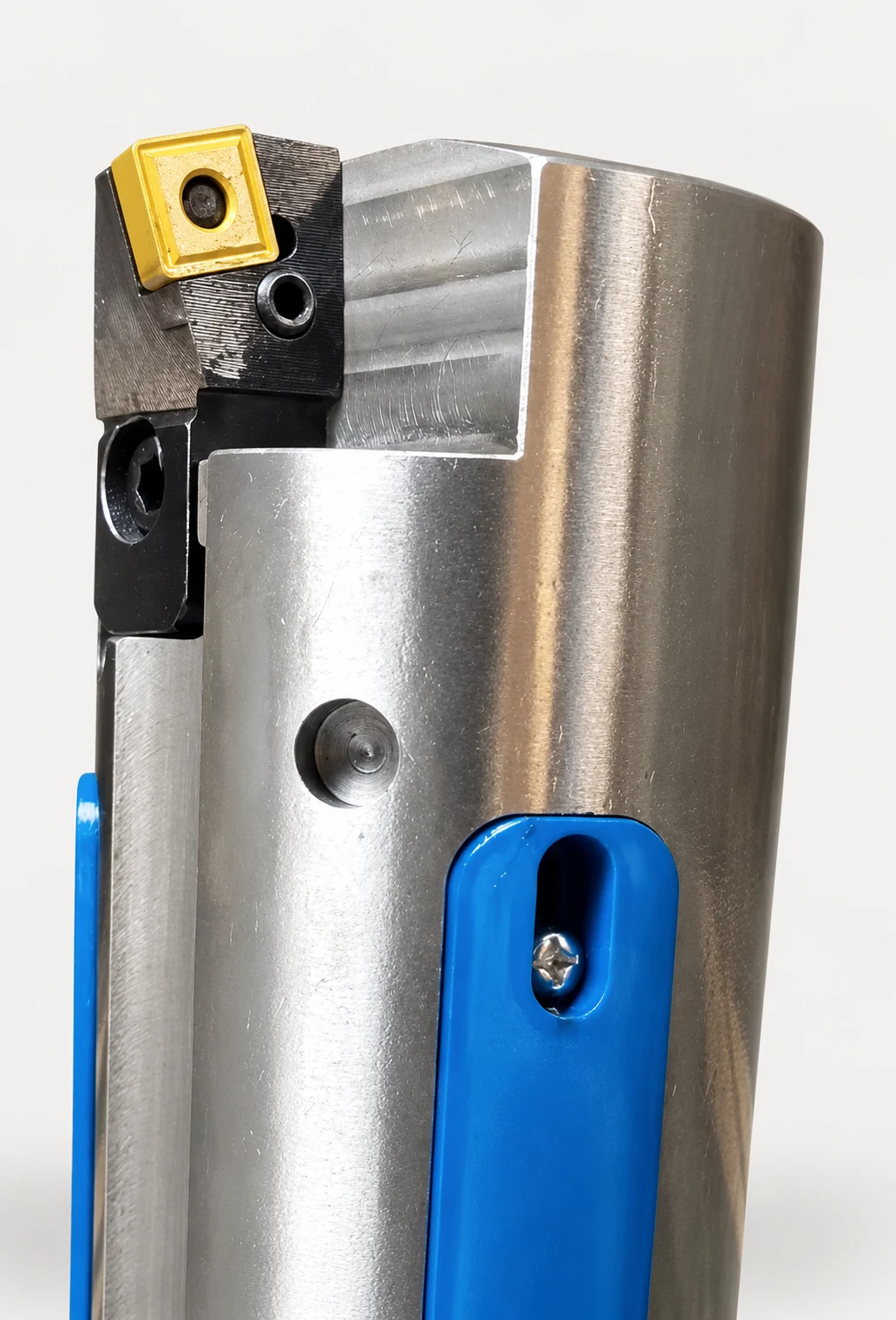

Rough boring head, side view
Rough boring head, side view

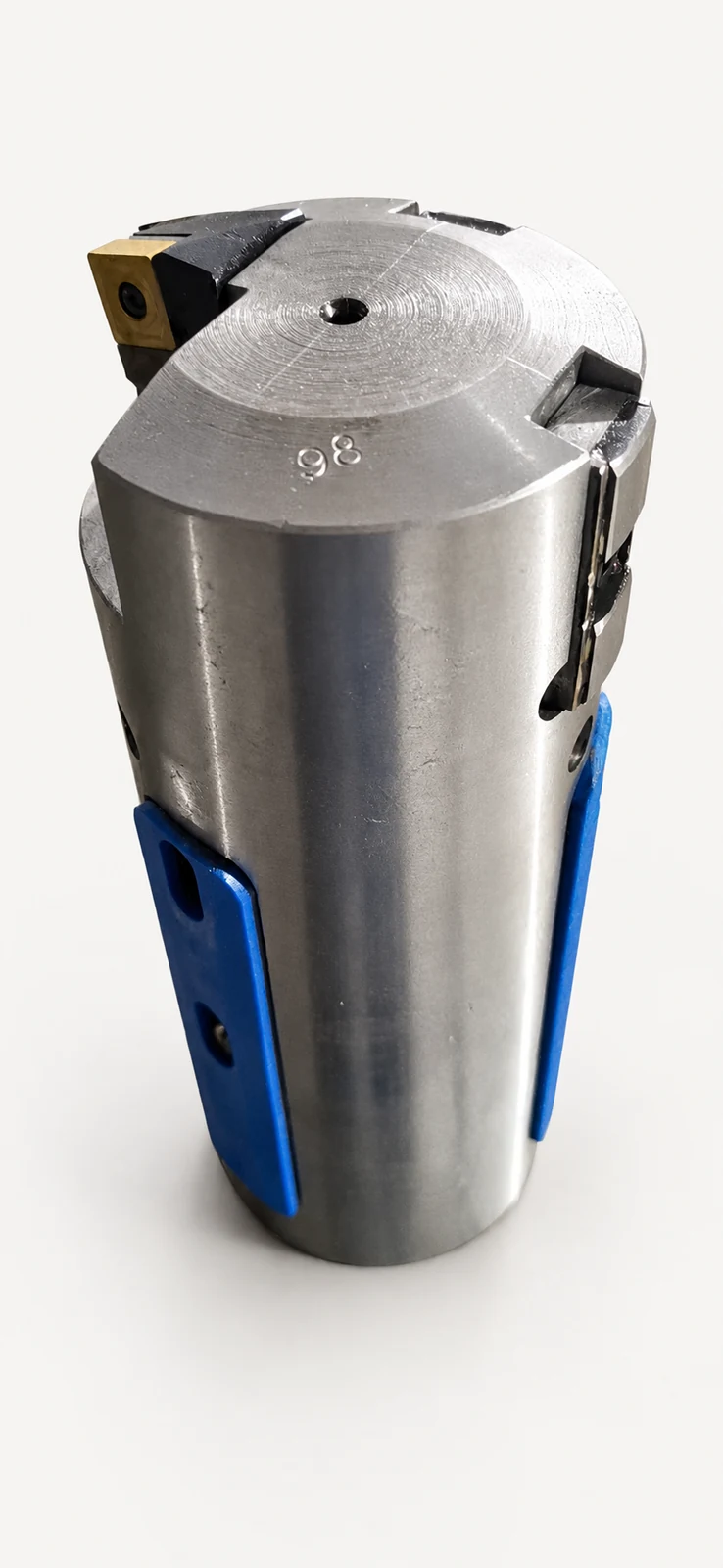

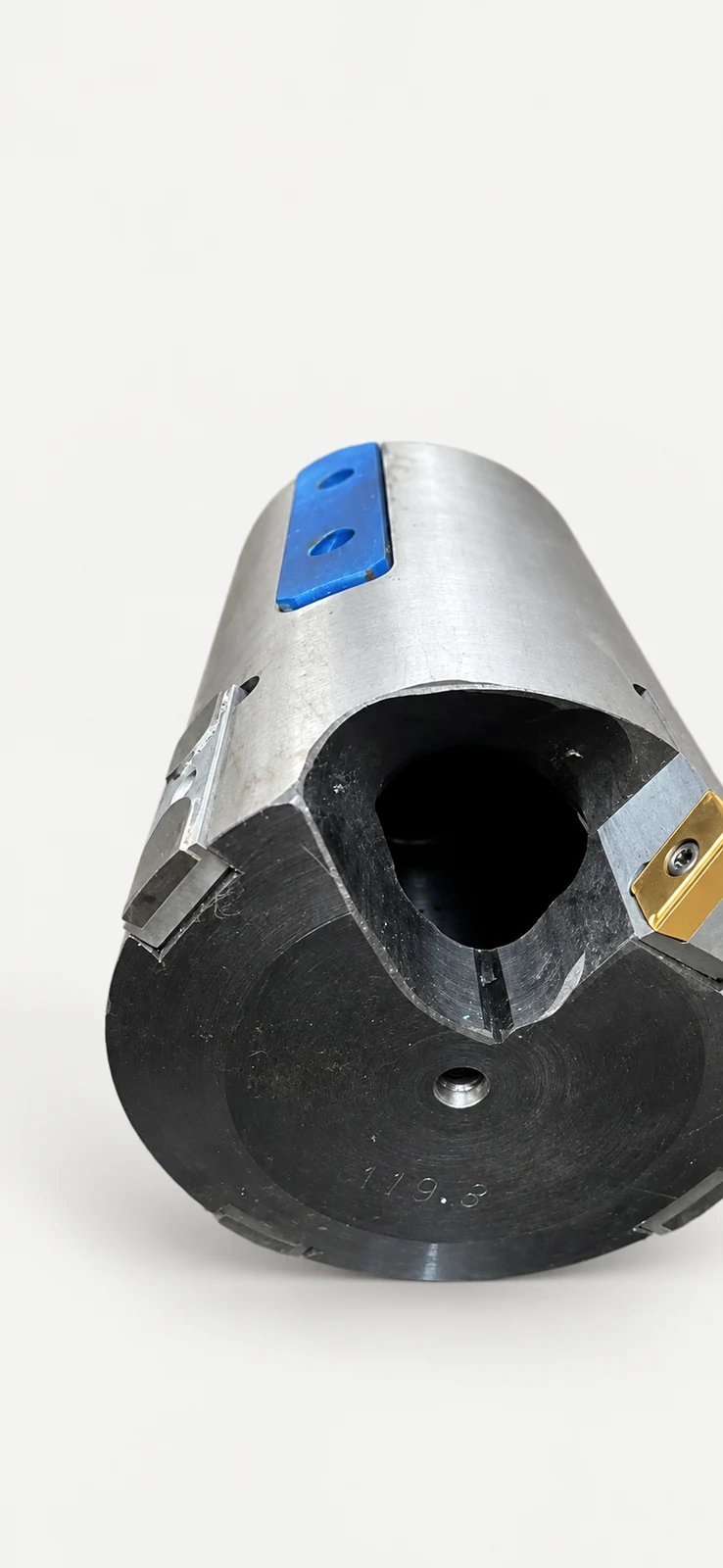

Rough boring head, end detail
Rough boring head, side view
Rough boring head, end detail
BLIND-BORE BORING TOOL
For boring blind holes. The photographs show the tool face and peripheral insert holders.

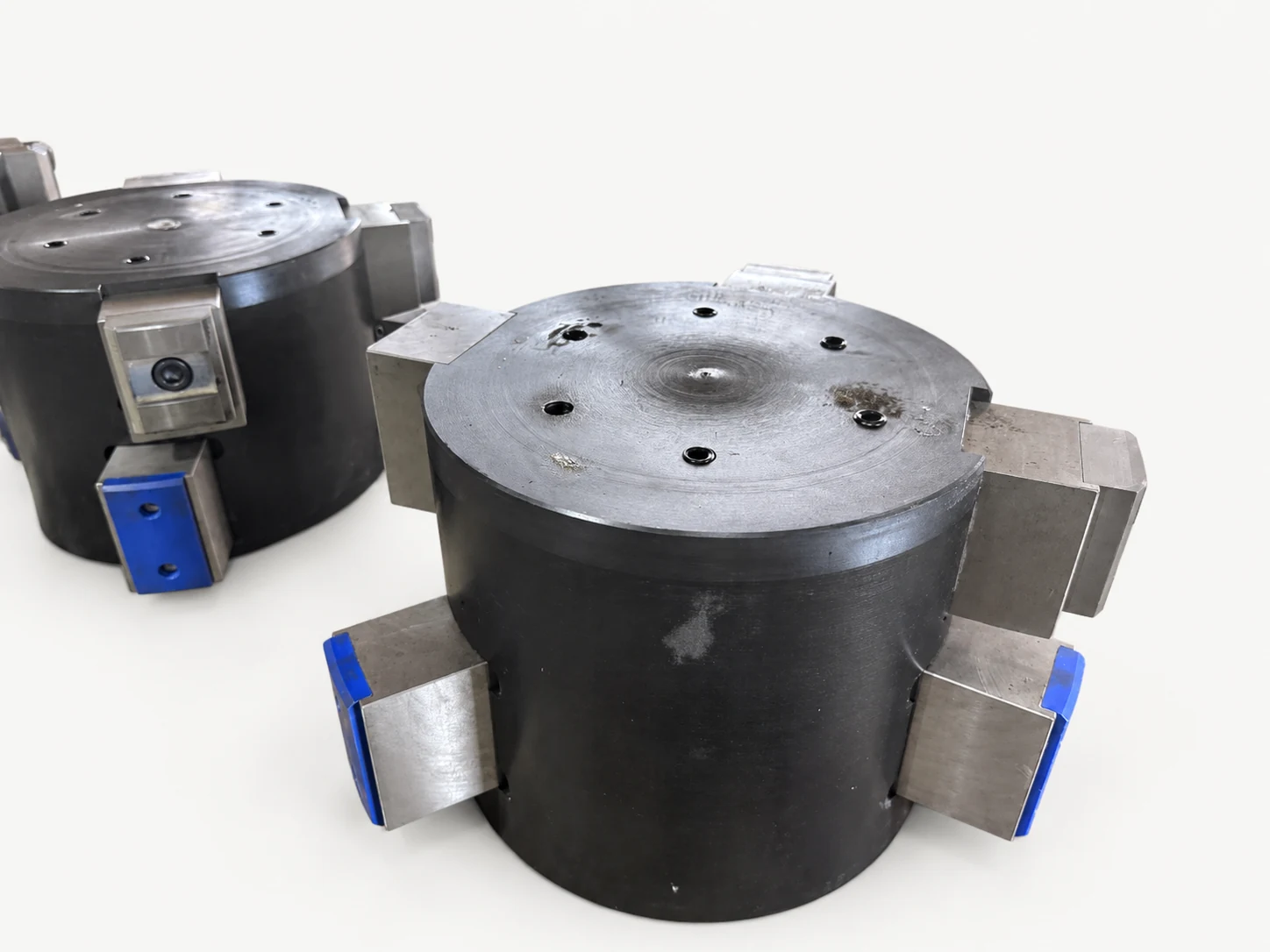

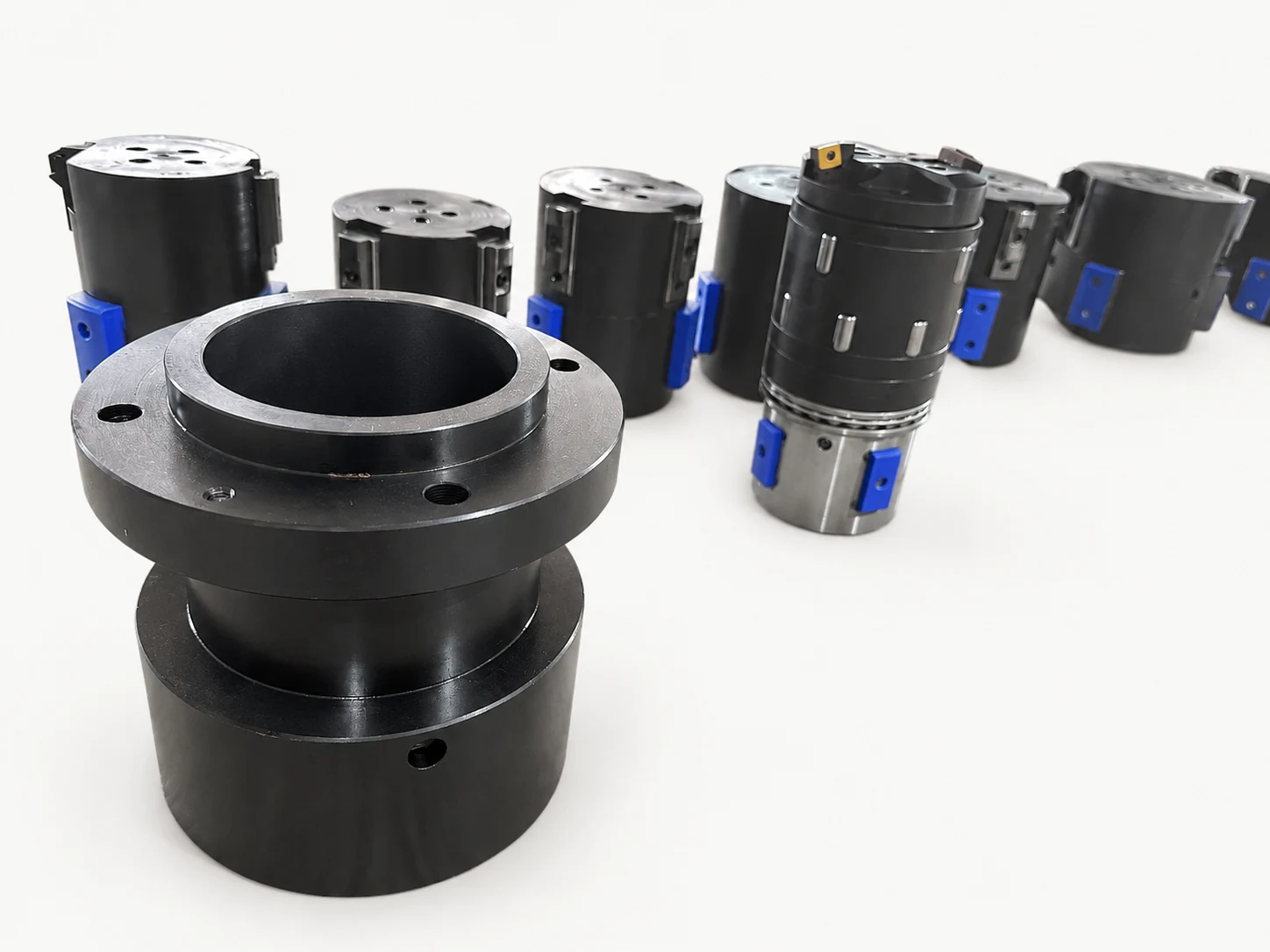

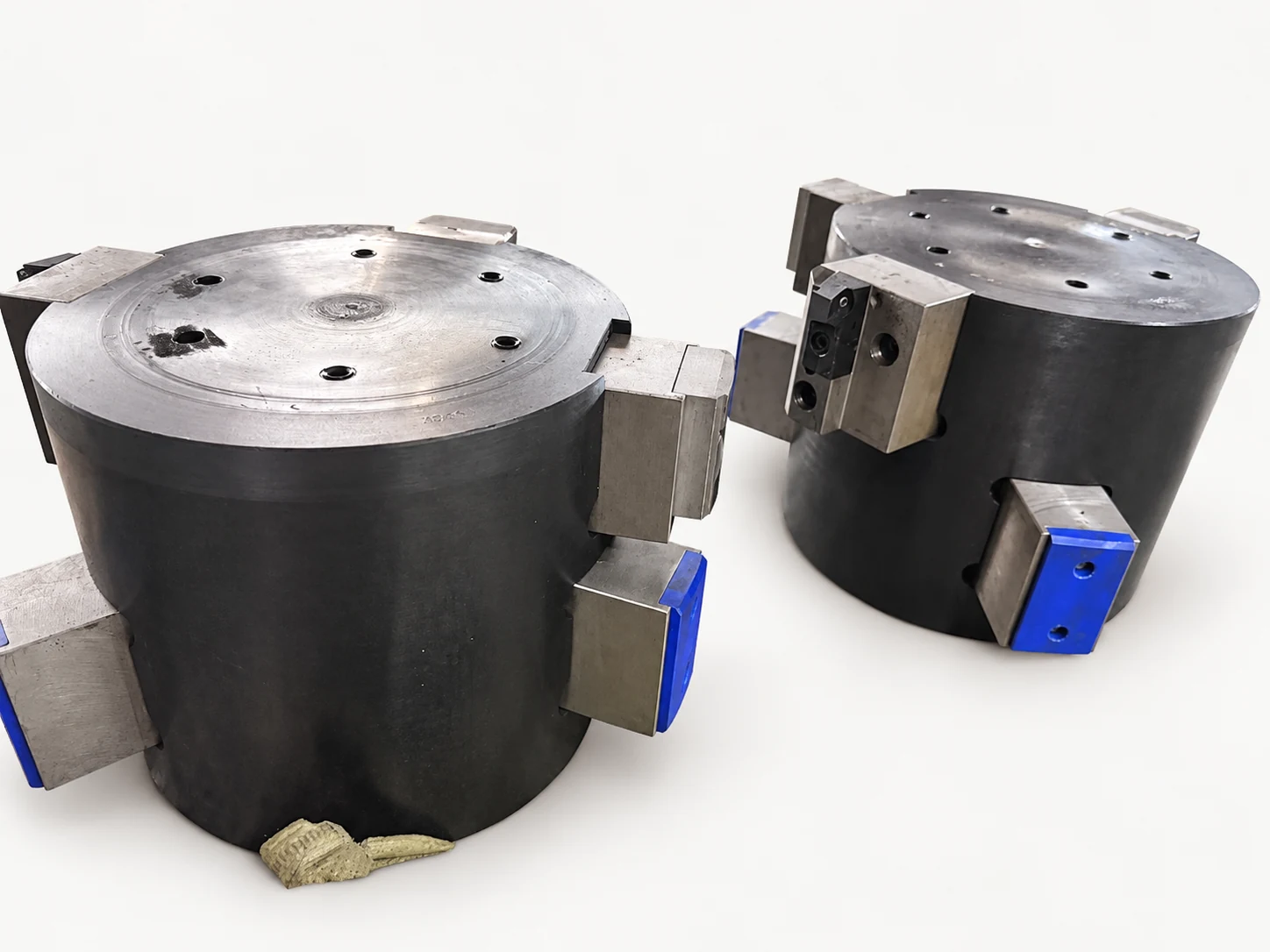

Blind-bore boring head, overall

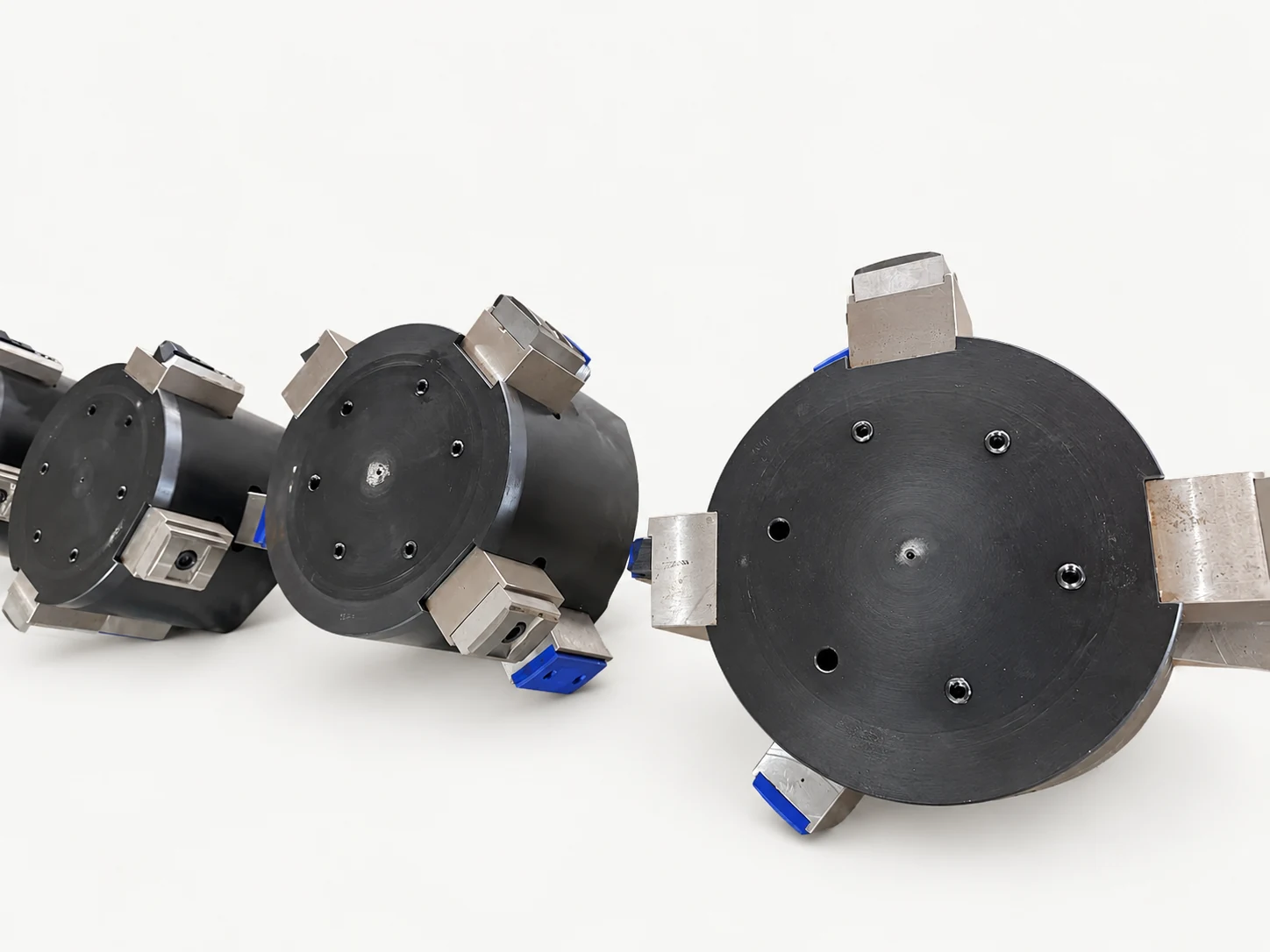

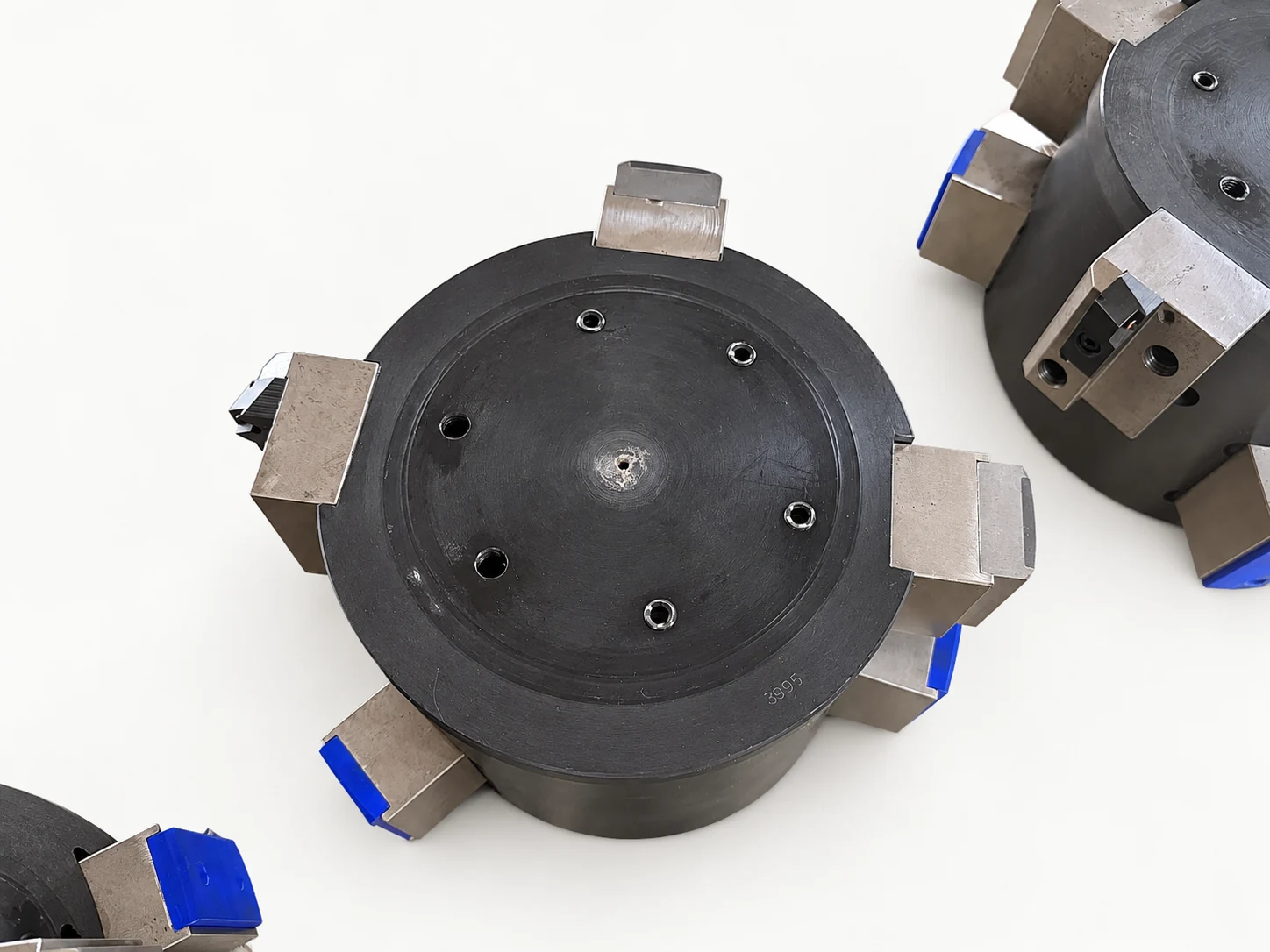

Blind-bore boring head, face

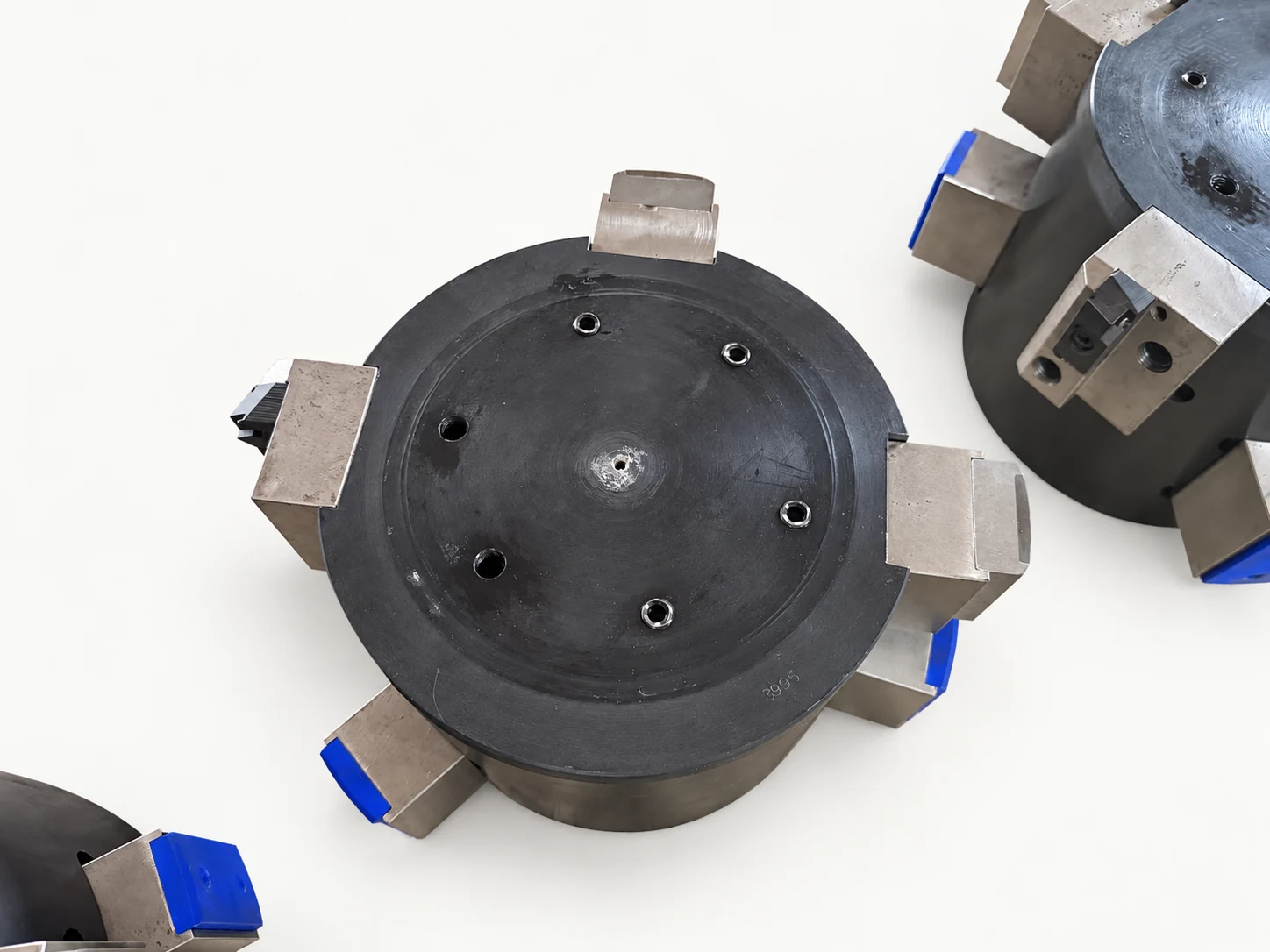

Blind-bore boring head, face
Blind-bore boring head, face
Blind-bore boring head, overall
TOOLING 02

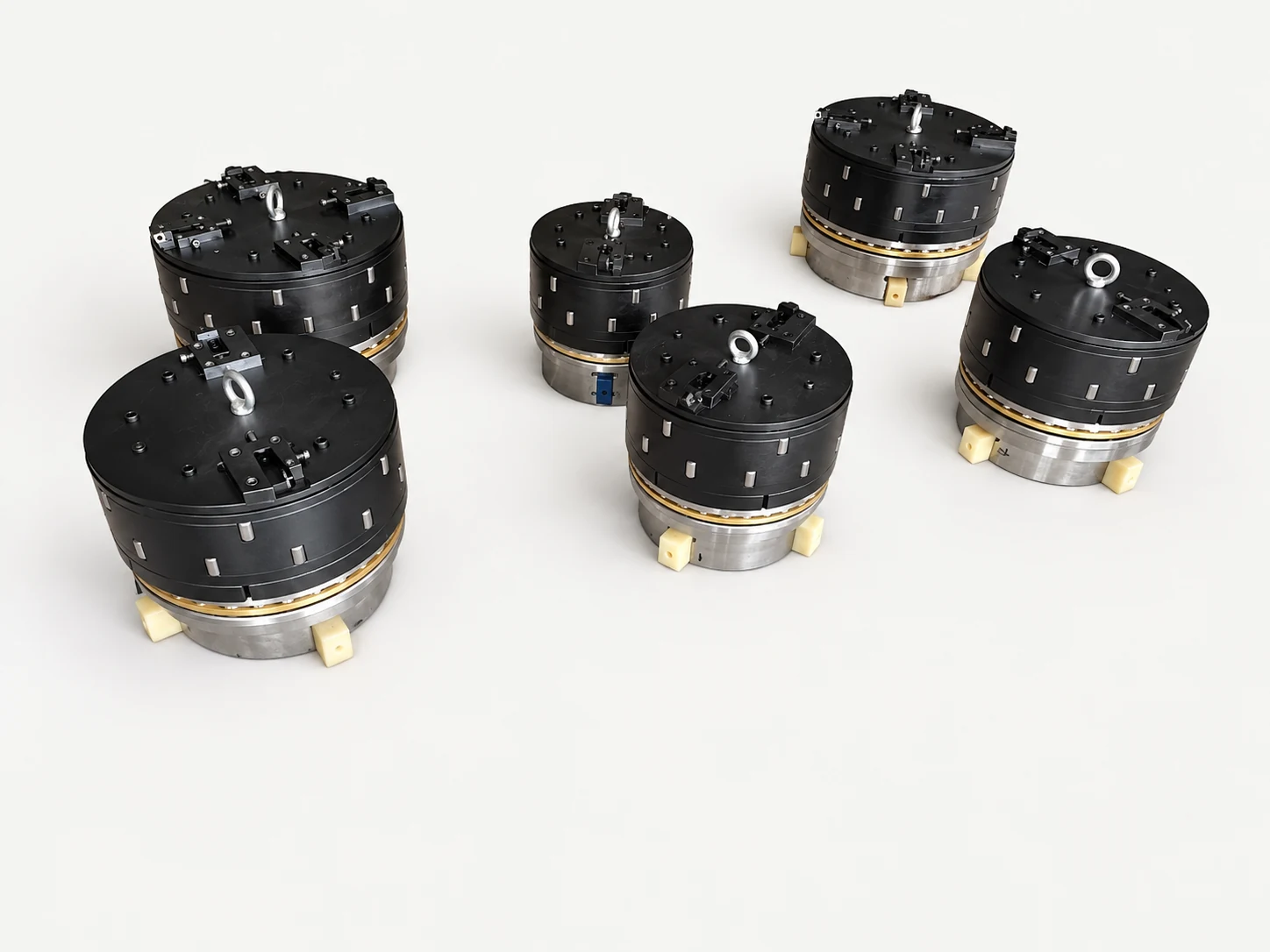

Tools that combine cutting and roller burnishing, including combined boring and burnishing heads and skiving and burnishing tools.
COMBINED BORING AND ROLLER BURNISHING
Combines boring and roller burnishing in one tool. The photographs show cutting inserts, rollers, and guide structures.

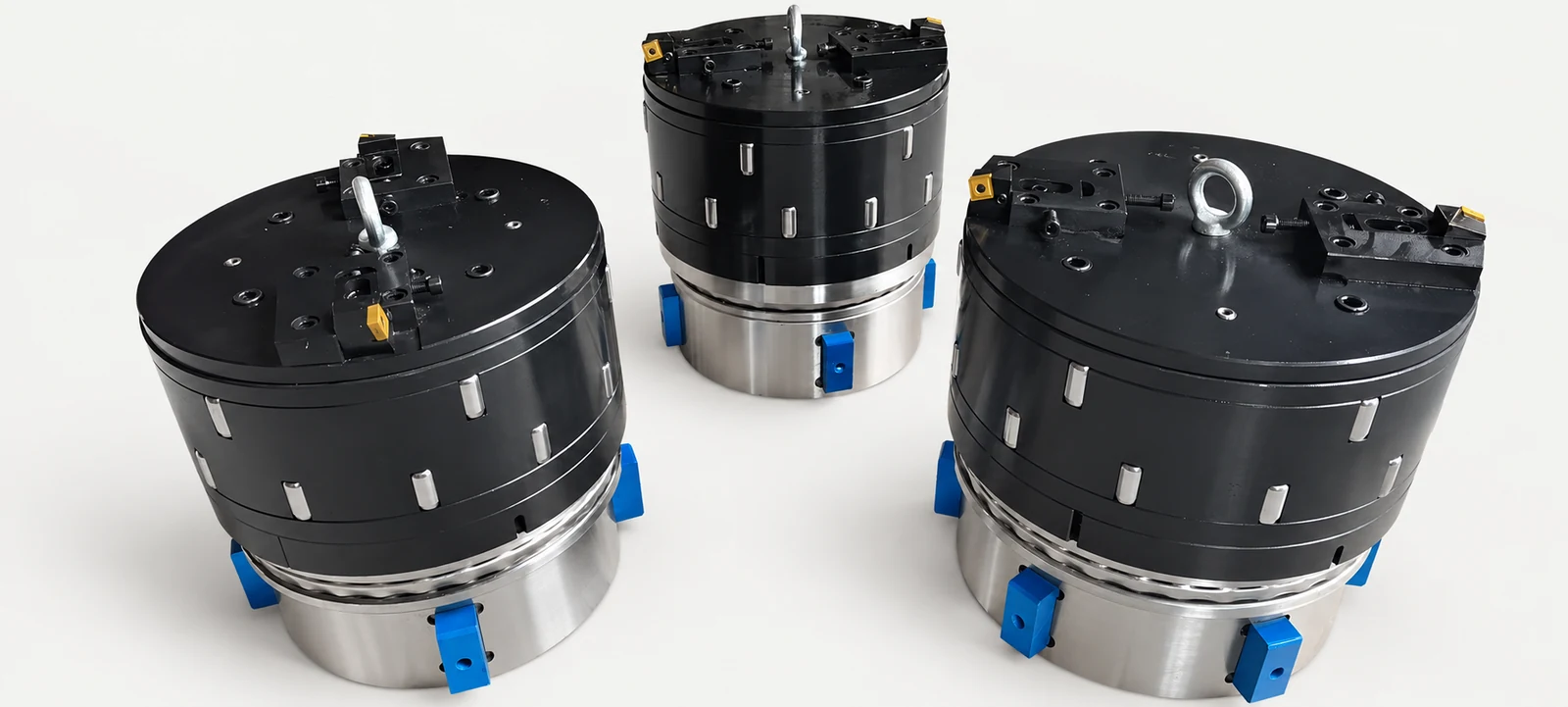

TGG heads, multiple sizes

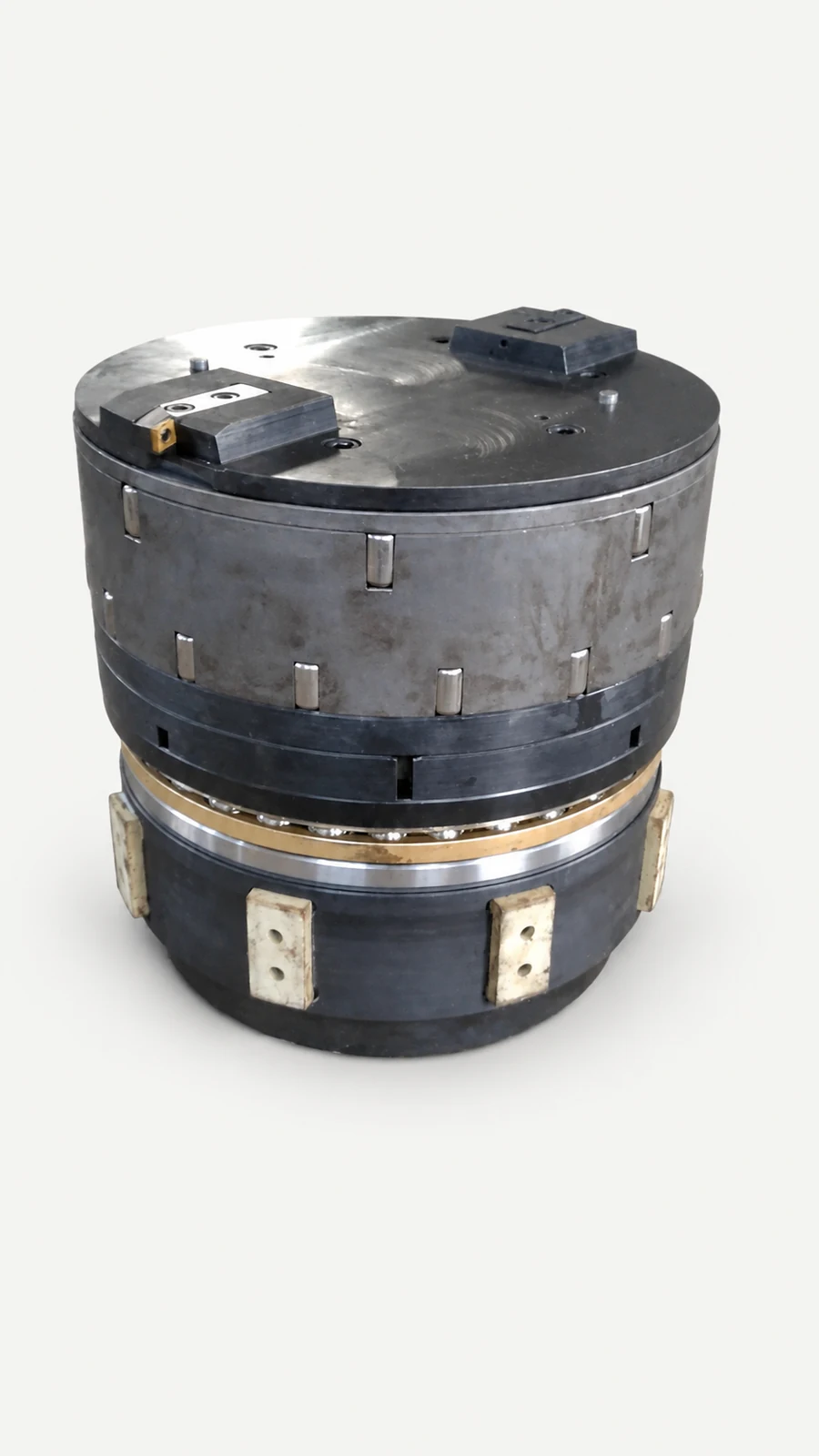

Combined boring and burnishing head
PNEUMATIC SKIVING AND ROLLER BURNISHING TOOL

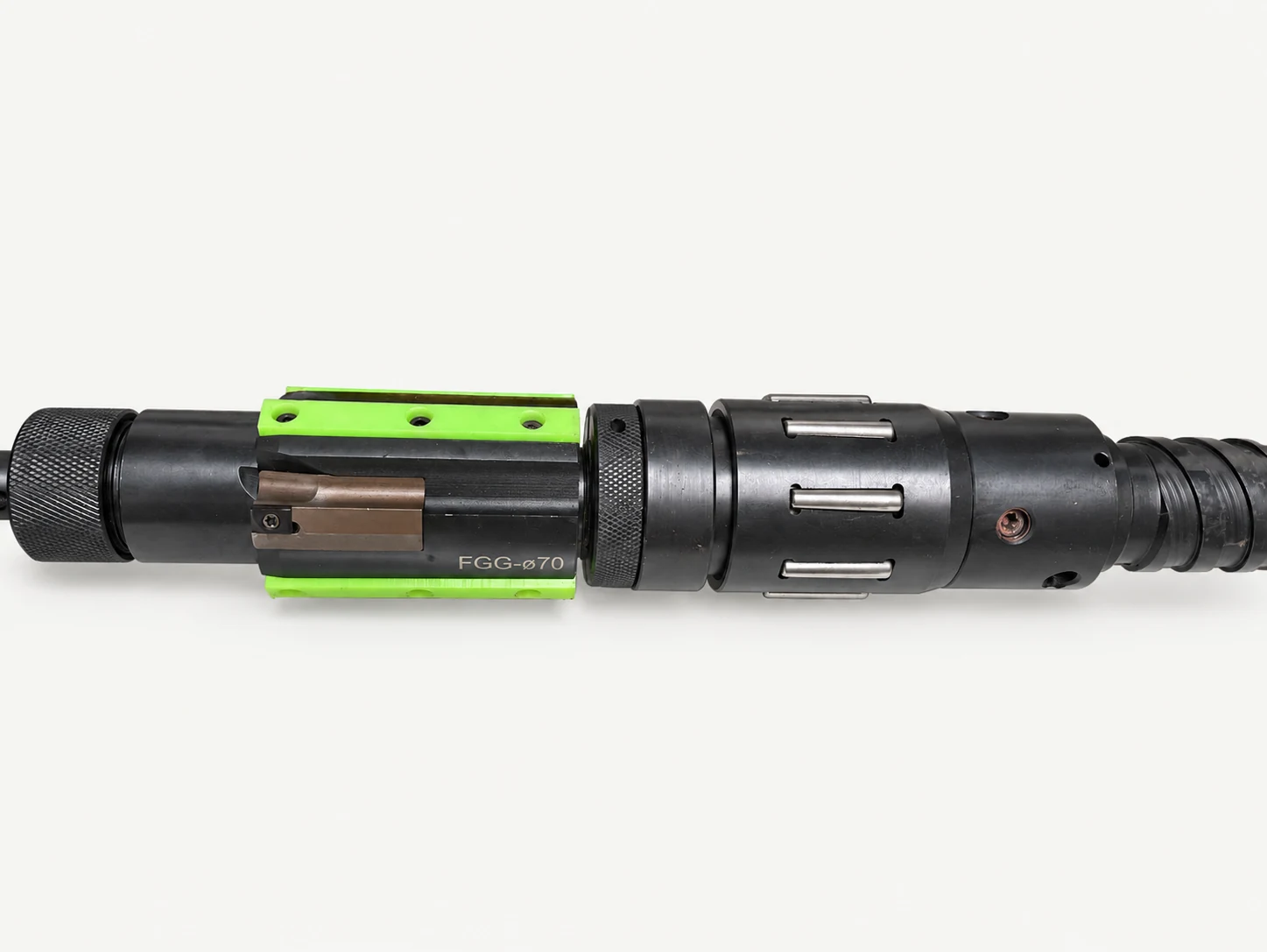

Pneumatic skiving and burnishing tool. The photographs show the cutting section, burnishing section, and connection end.

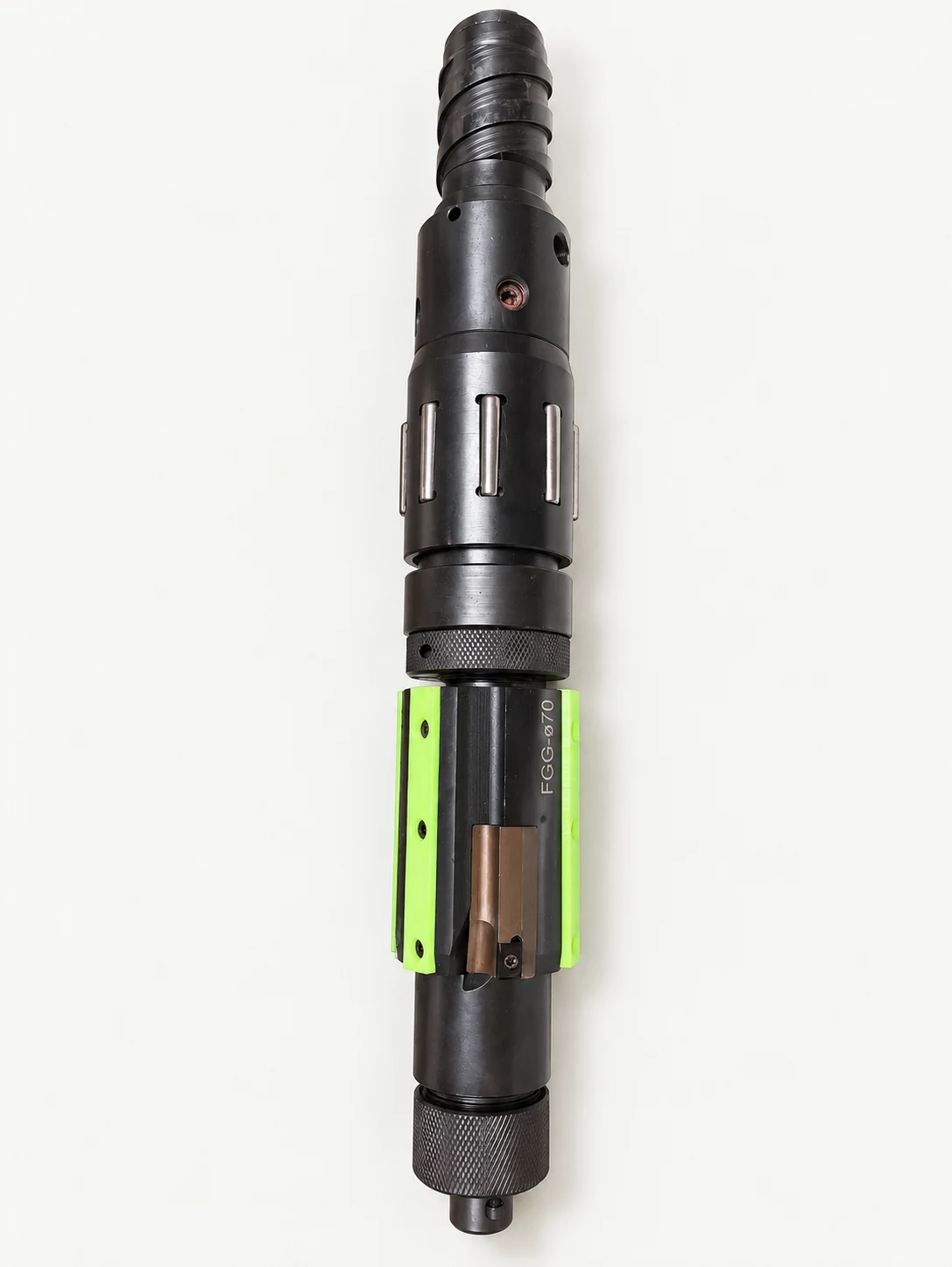

Pneumatic tool, overall
HYDRAULIC SKIVING AND ROLLER BURNISHING TOOL
Hydraulic skiving and burnishing tool. The expansion and retraction method and machining configuration depend on the specific model and need to be confirmed.

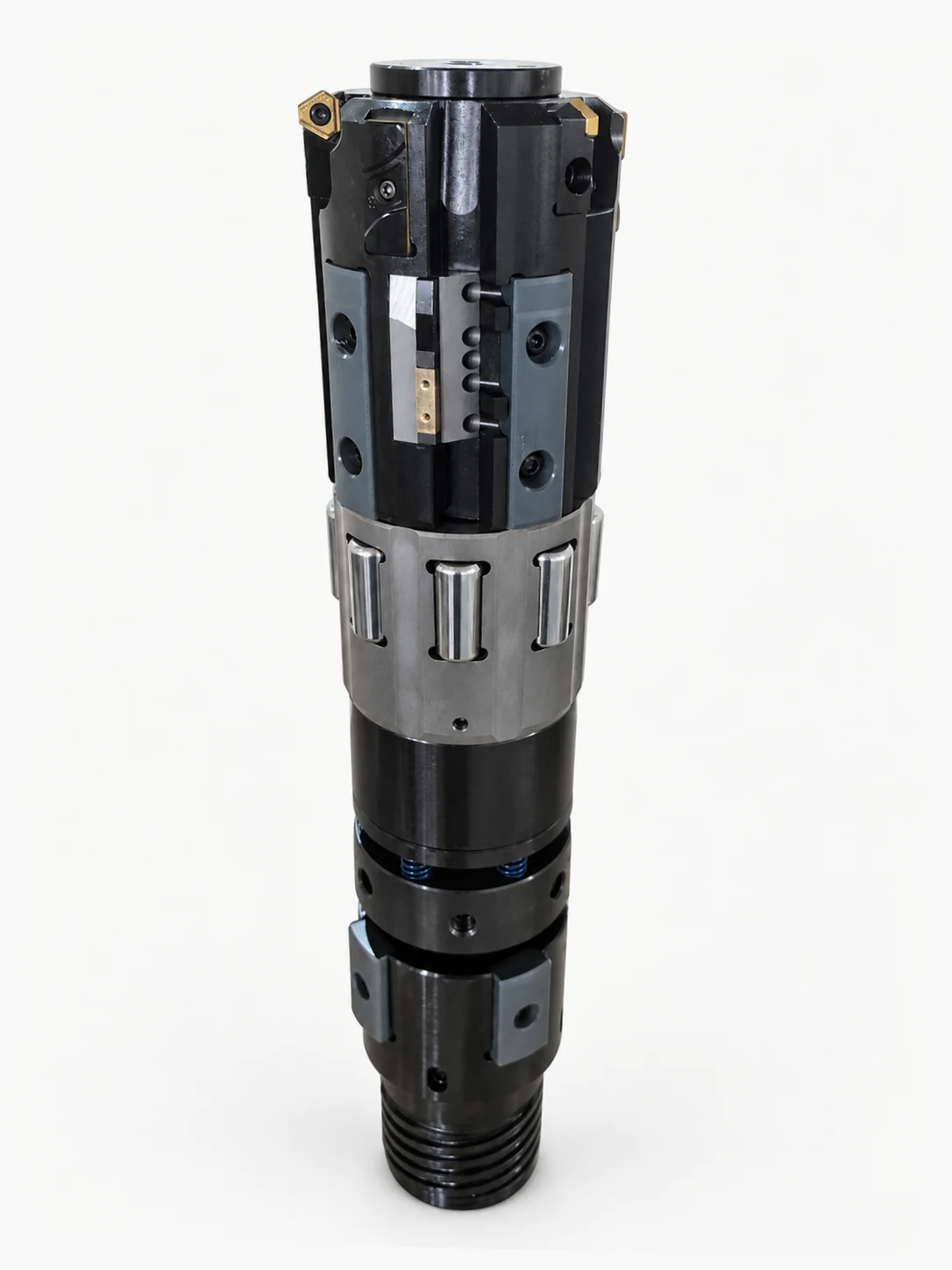

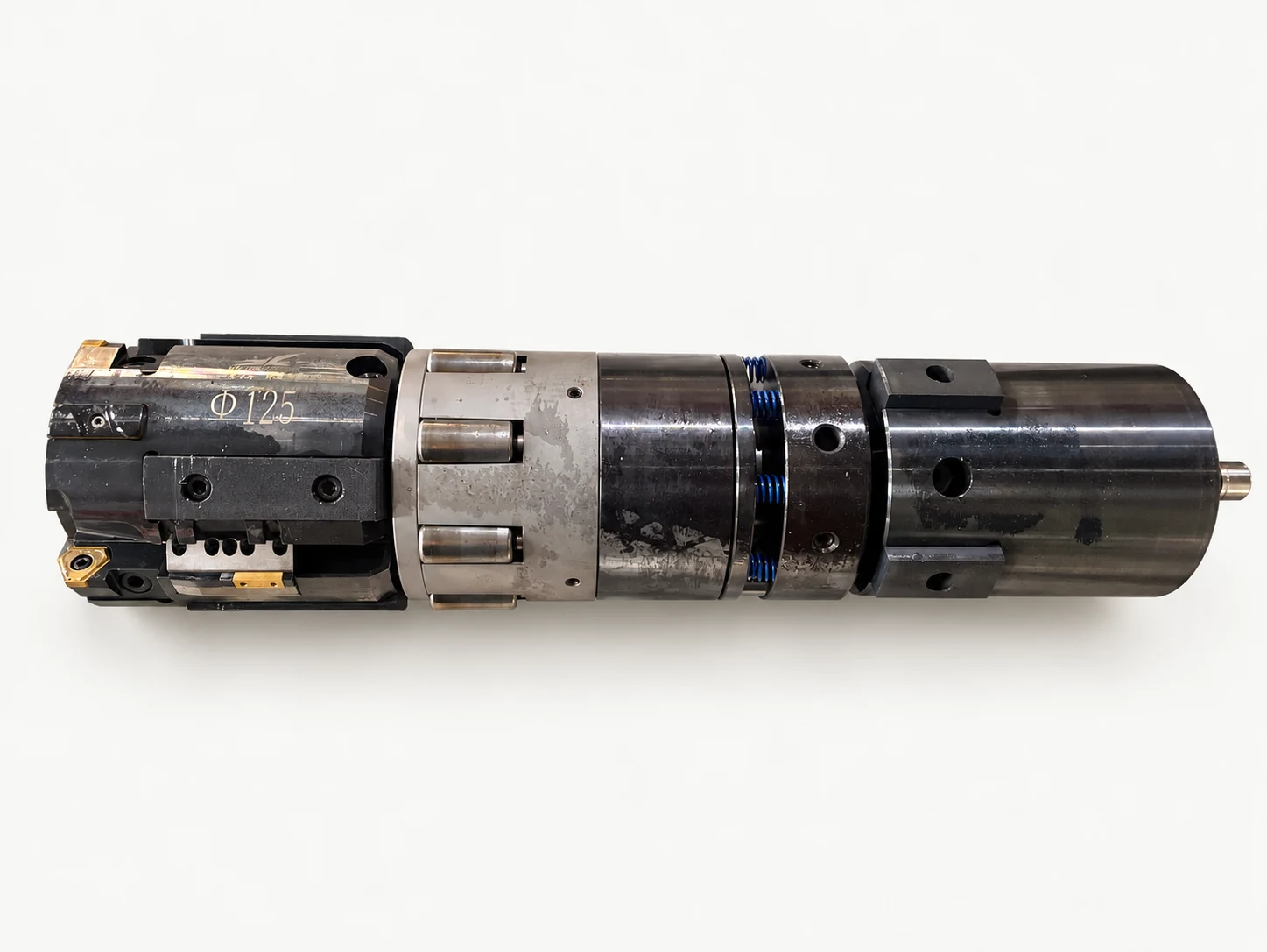

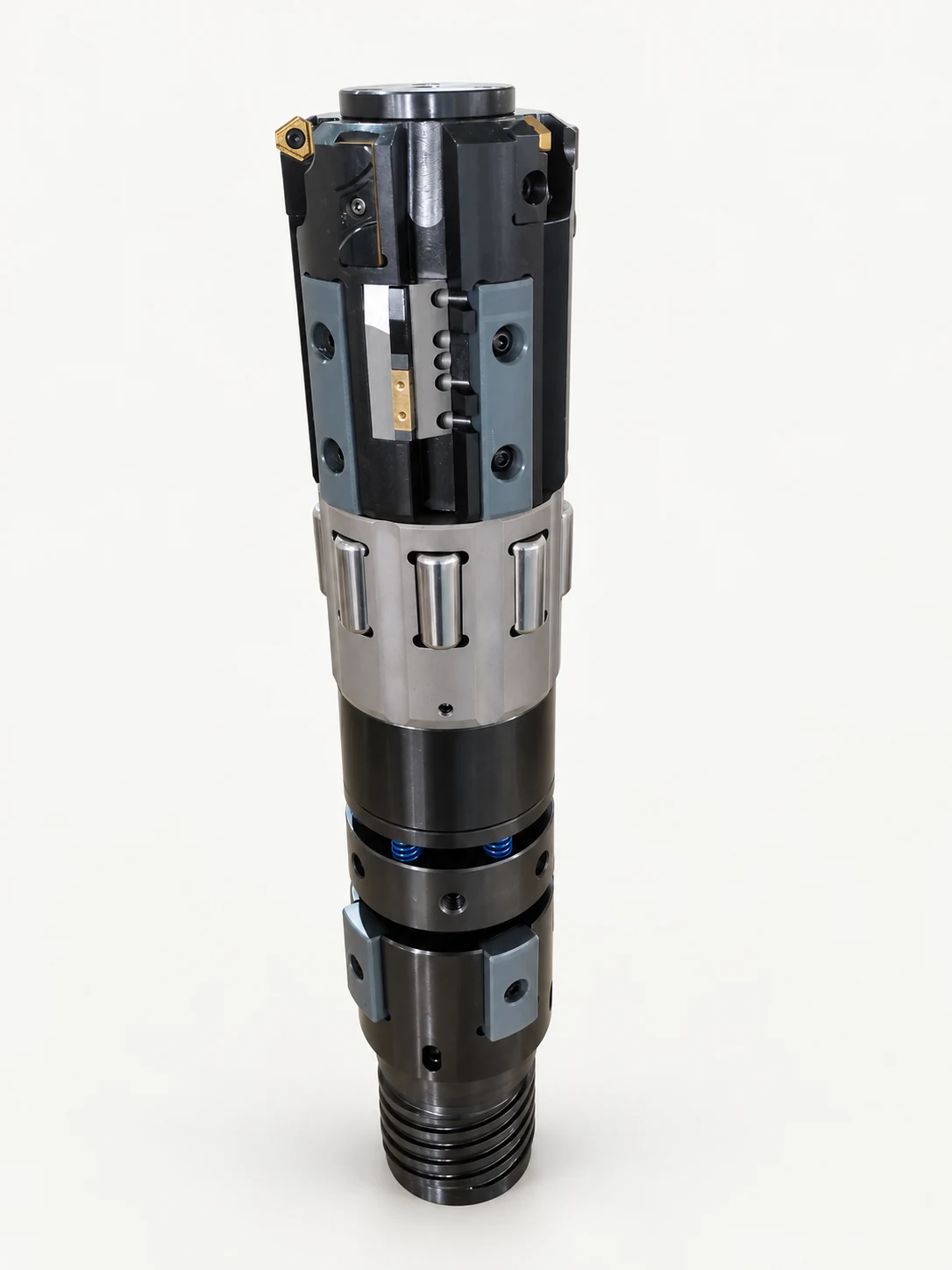

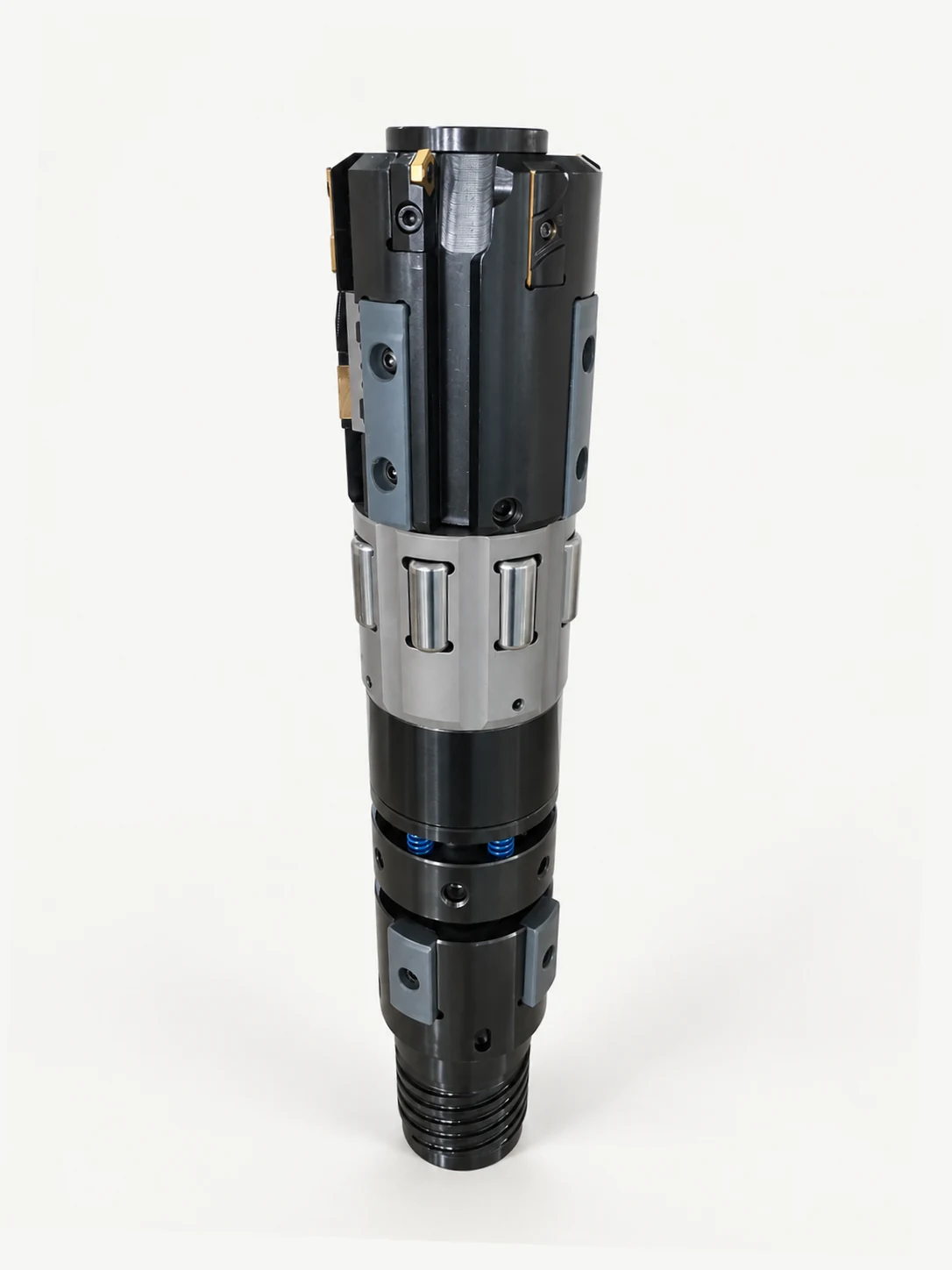

Hydraulic tool, overall
Hydraulic tool, overall

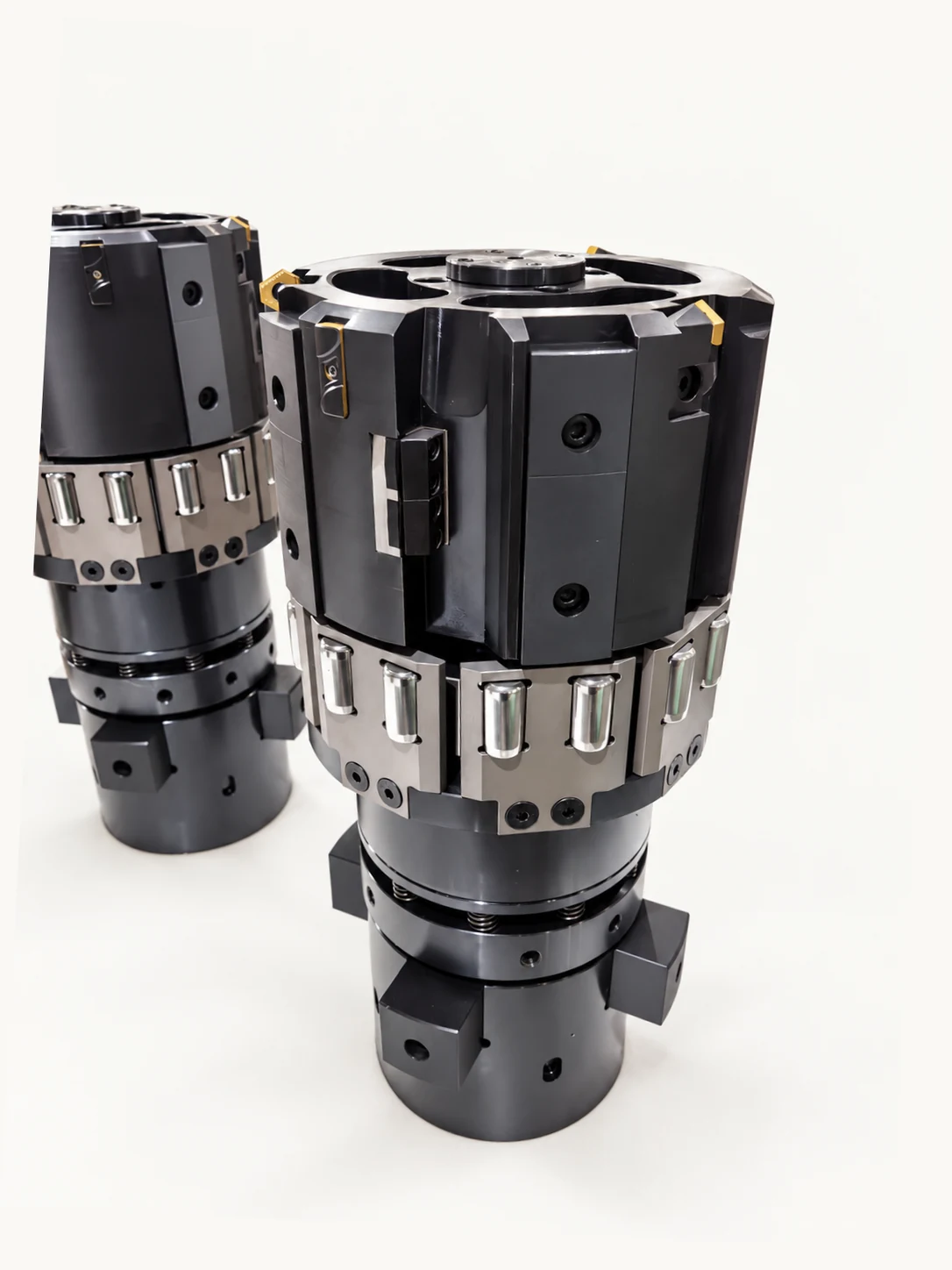

Hydraulic tools, multiple units
Hydraulic tool, overall

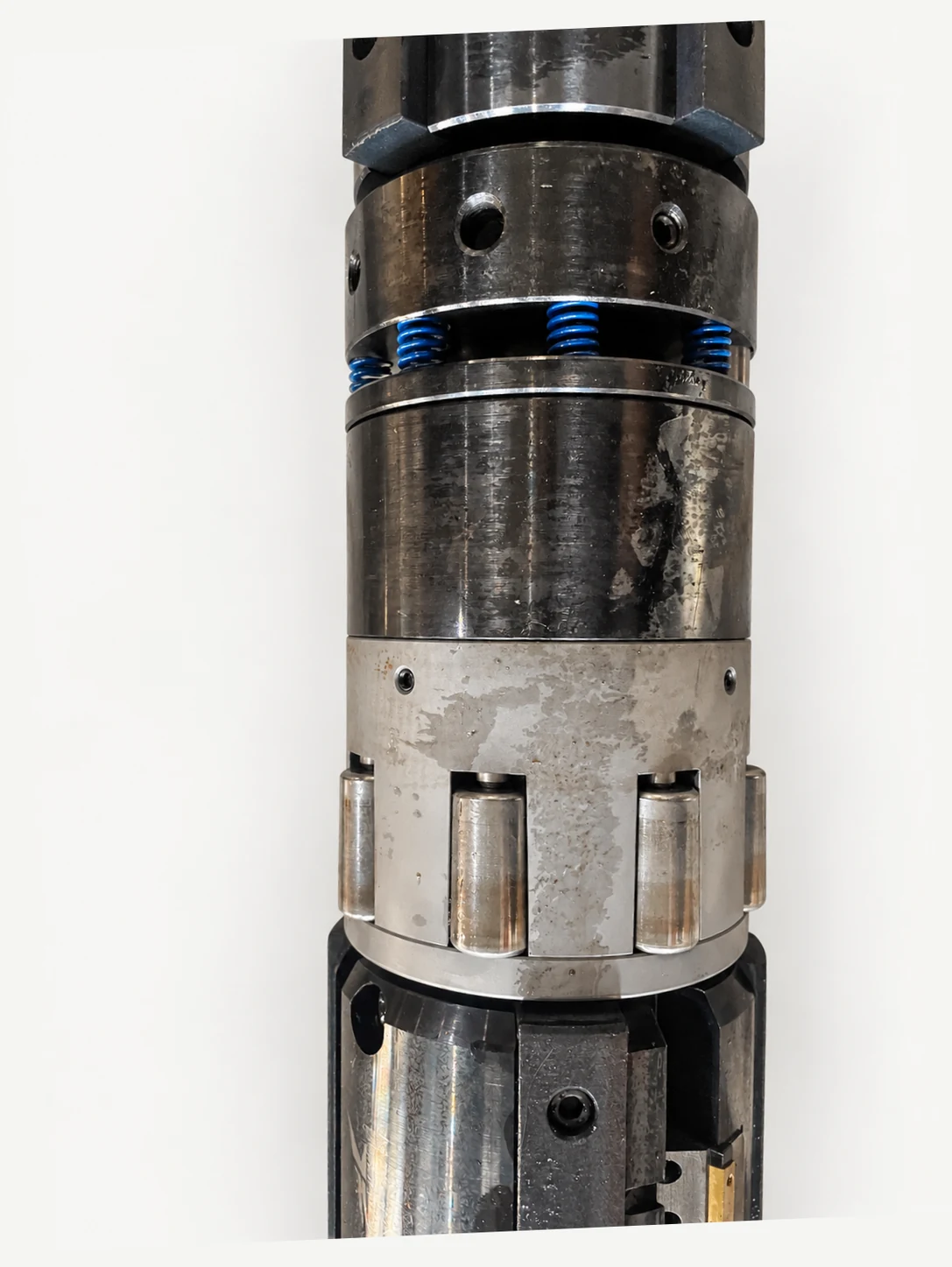

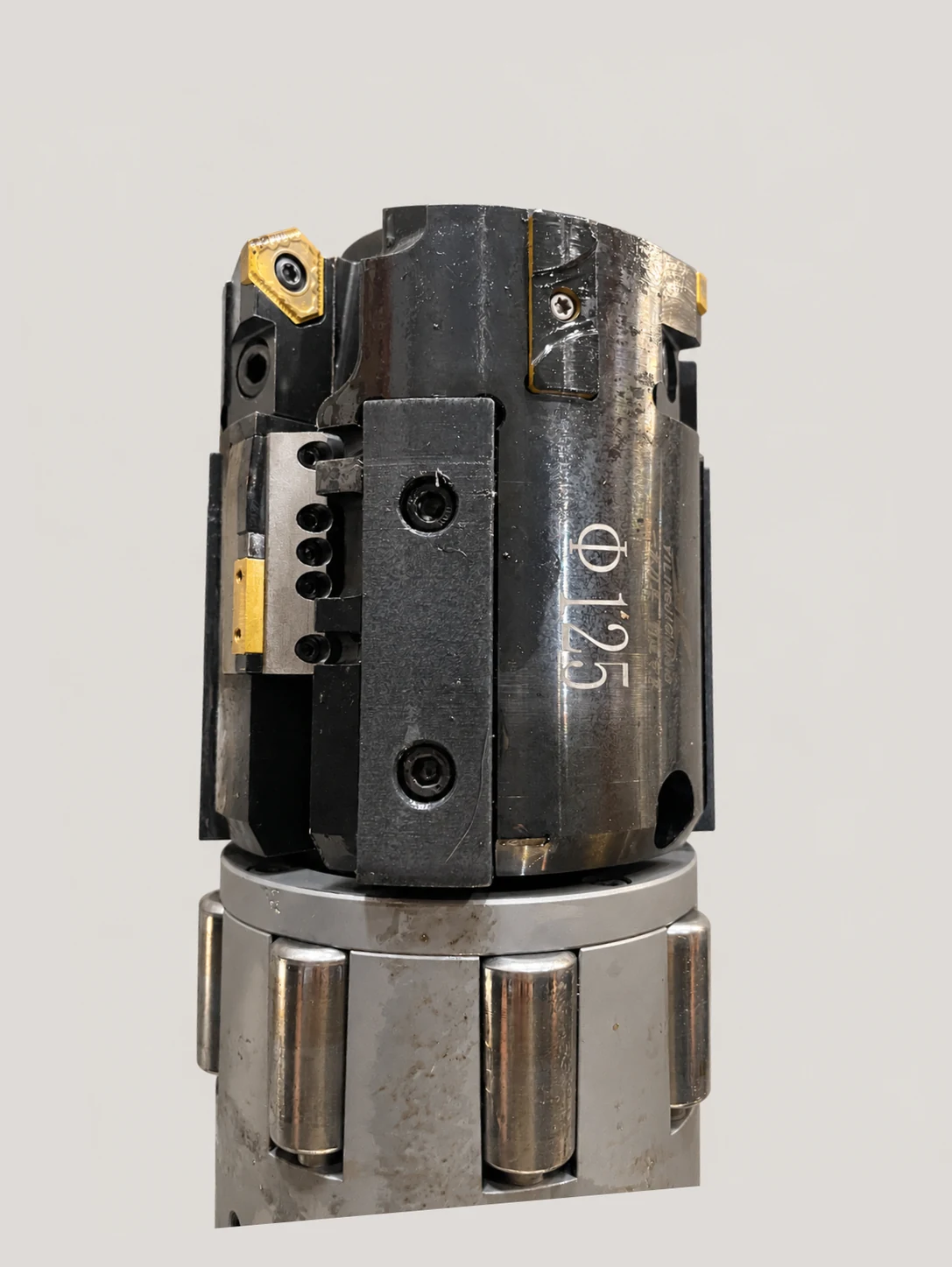

Hydraulic tool, cutting end
Hydraulic tool, cutting end

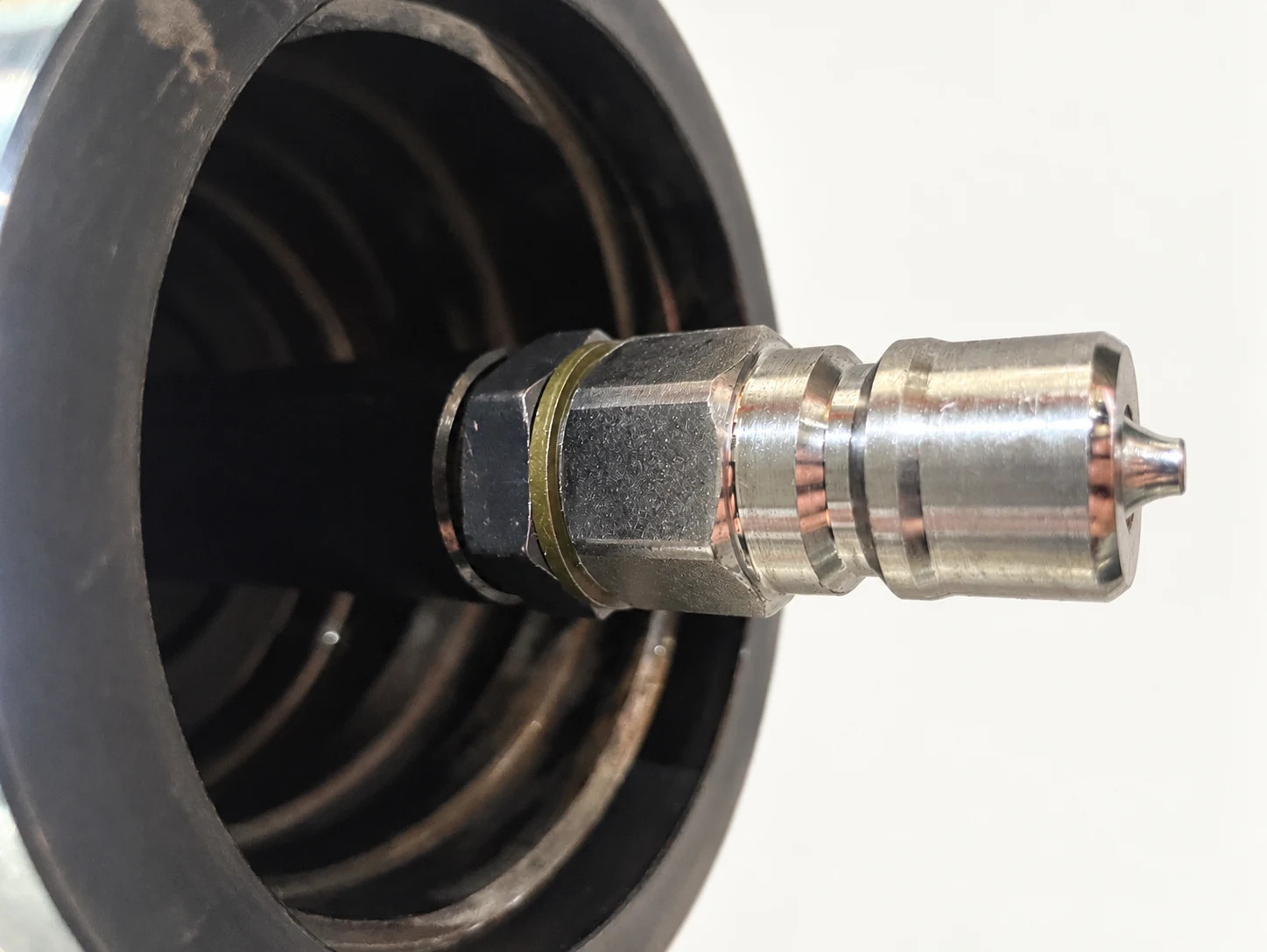

Hydraulic tool, connection end
TOOLING 03
A roller burnishing tool for blind-bore machining.
BLIND-BORE ROLLER BURNISHING TOOL

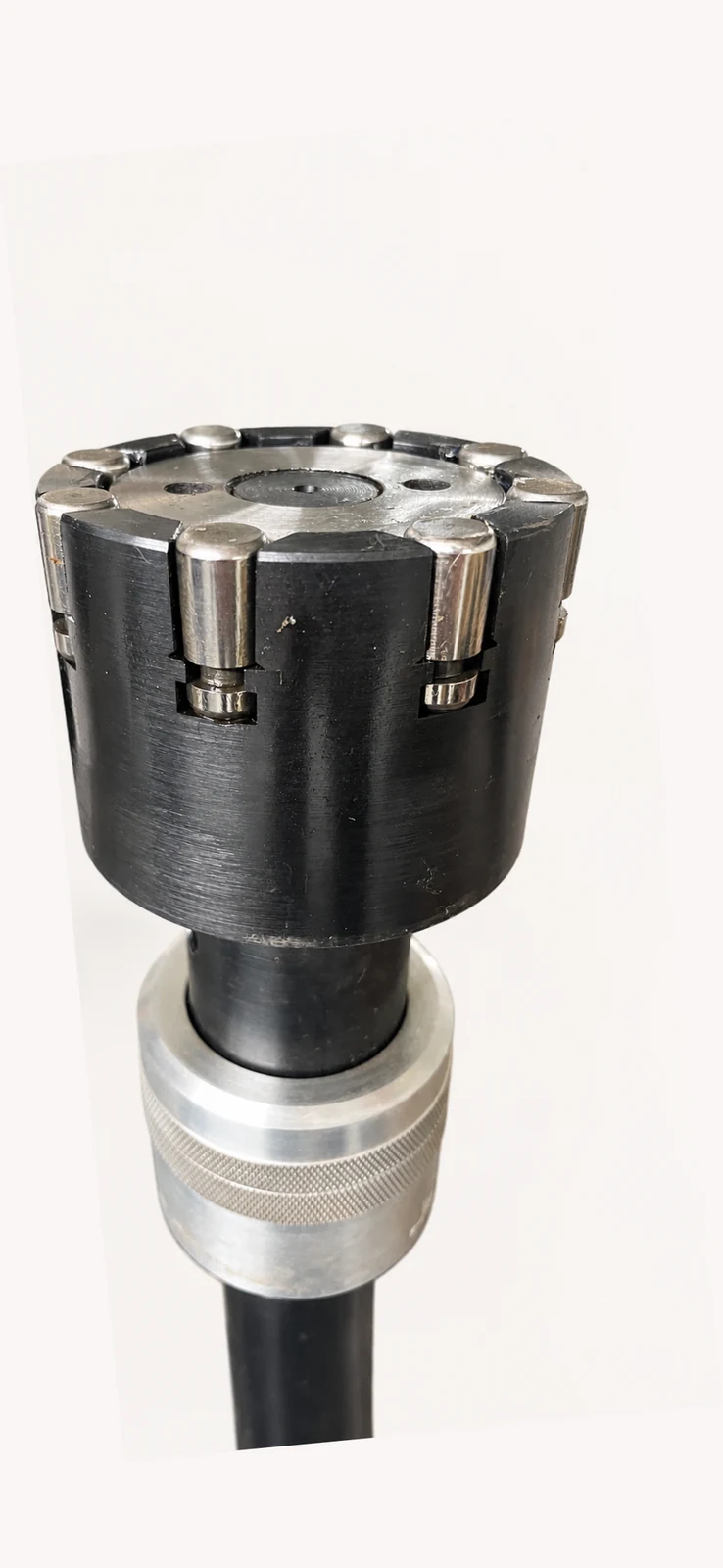

For roller burnishing blind holes. The photographs show the rollers, tool body, and connection.

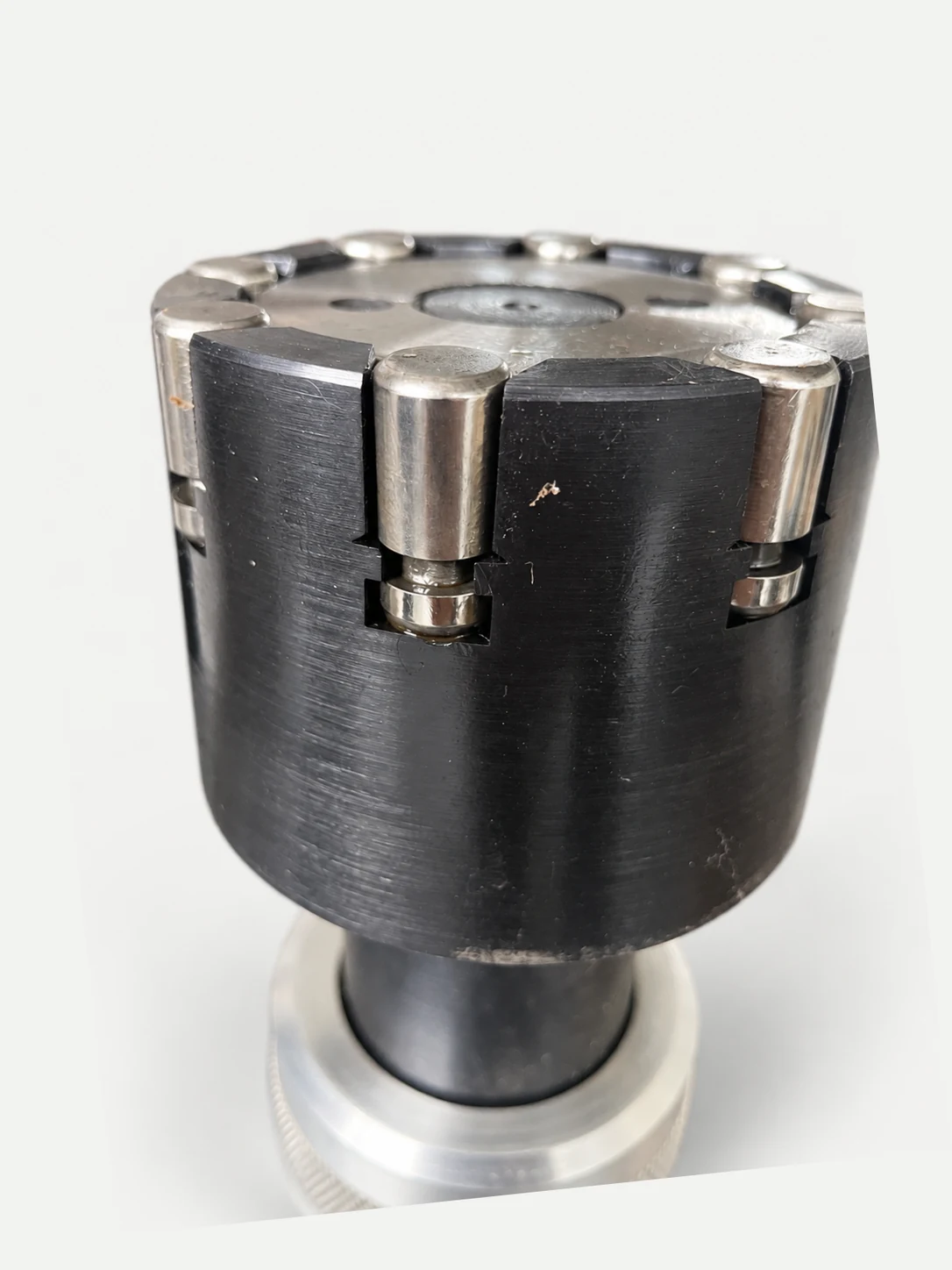

Blind-bore burnishing head, detail
TOOLING 04
A workshop photograph of an annular trepanning tool.
TREPANNING TOOL

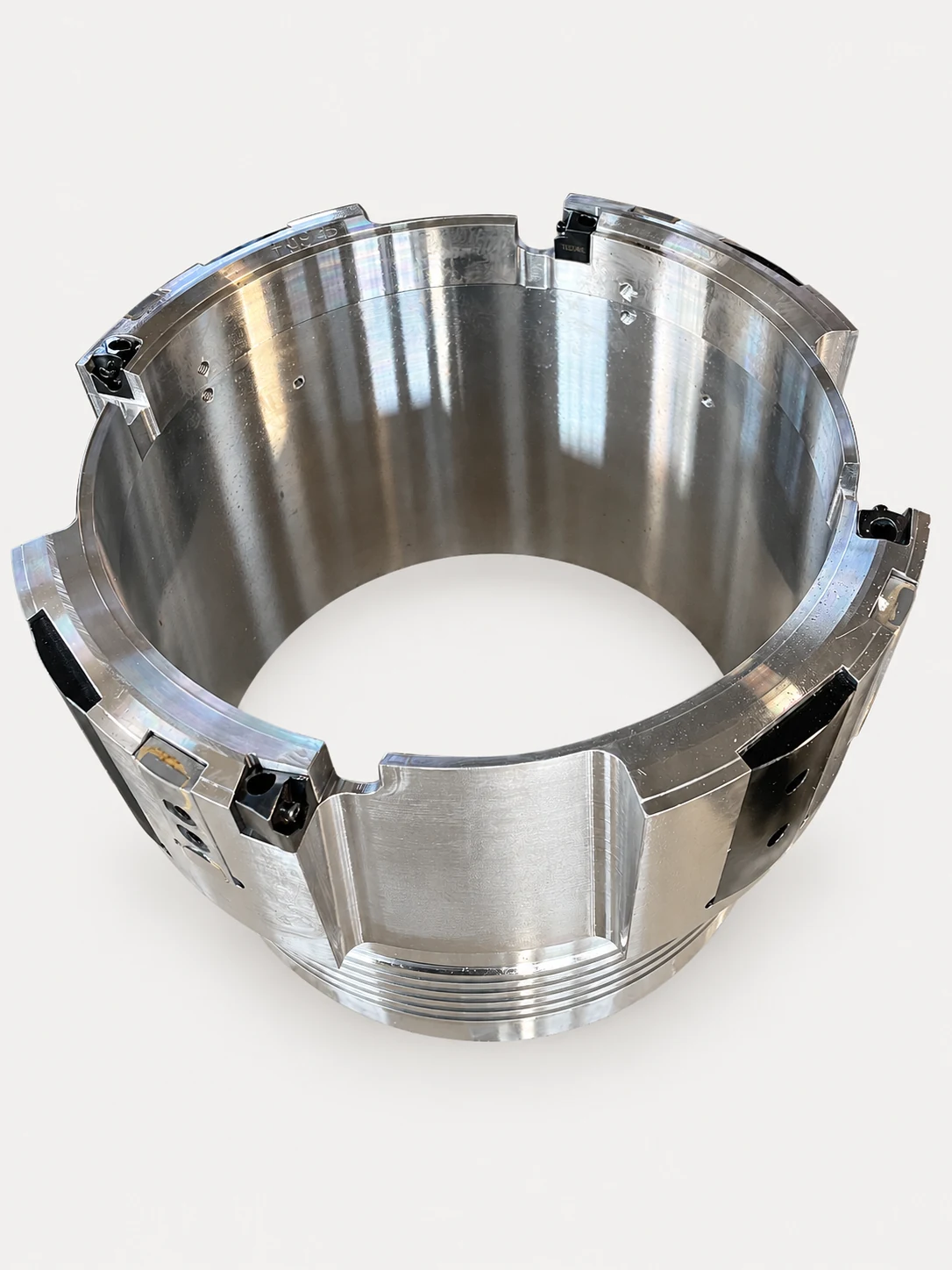

For trepanning. The photograph shows a hollow annular tool body with insert holders arranged around its circumference.
TECHNICAL PROPOSAL
Tell us the workpiece material, bore diameter, machining depth, and process requirements so we can confirm the tool specifications and configuration.
